Offset printing ink is a thick, paste-like consumable made for offset lithography. It works because oil and water repel each other. The ink has high tack and high viscosity so it can split cleanly through a series of rollers before reaching the substrate. That's what sets it apart from the thinner liquid inks used in flexo and gravure.
It's used in four-color process (CMYK) and spot color printing. Commercial print, packaging, publishing. The point is high resolution and stable color over long runs.
Table of Contents
The name comes from how offset lithography works. Ink is "offset", transferred from the plate cylinder to a rubber blanket cylinder, then to the paper. In Chinese it's 胶印油墨 (Jiāoyìn Yóumò), a reference to the rubber blanket (胶皮布) used in the transfer.
Technical sources sometimes call it "lithographic ink" or "offset litho ink" to distinguish it from direct-print inks. High-body, paste-like formulations fall under "paste inks." The low-viscosity stuff used in flexography and gravure falls under "liquid inks."

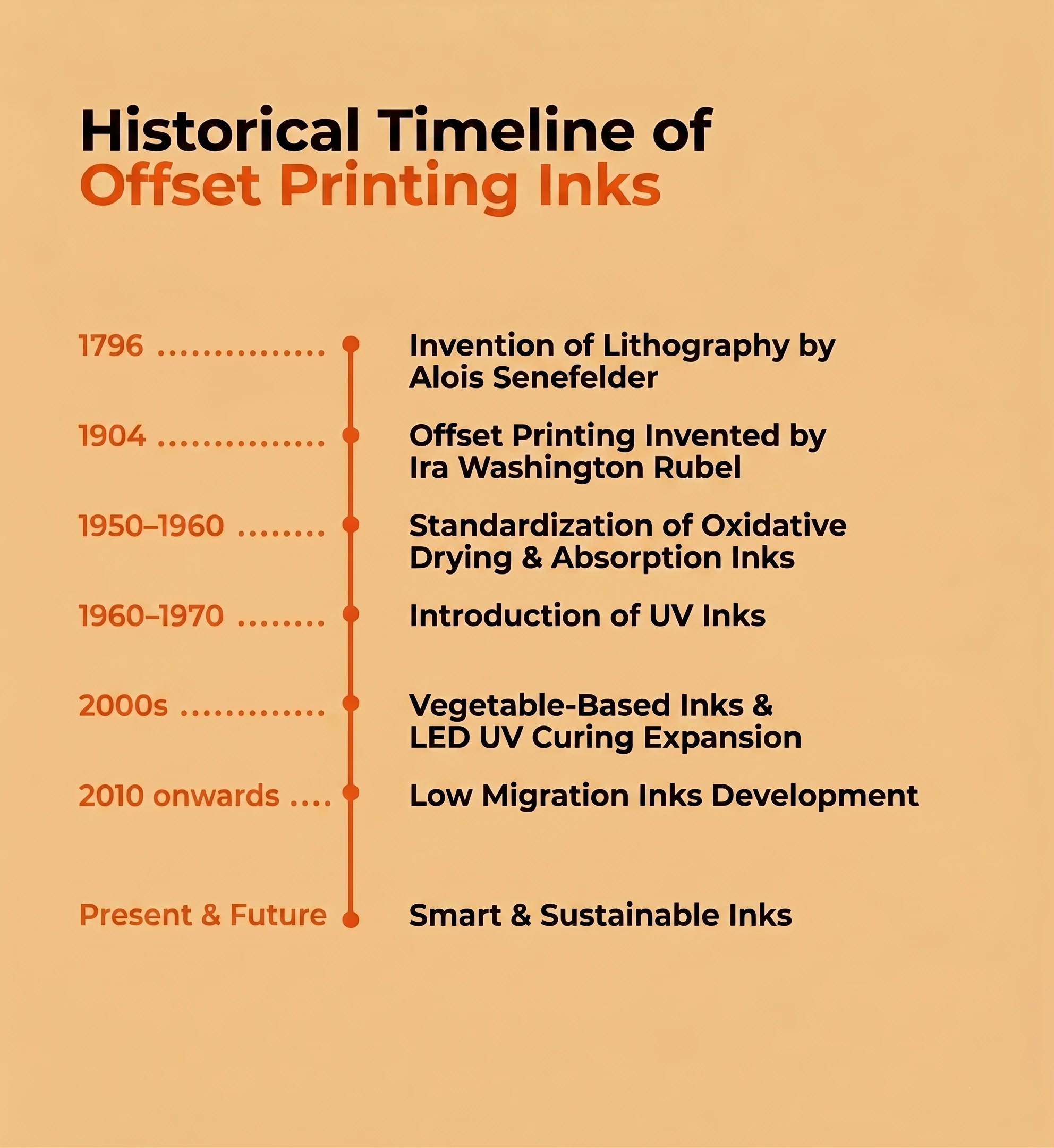

Lithographic printing started in 1796 when Alois Senefelder invented stone lithography in Bavaria. His process relied on water and grease repelling each other on porous limestone.
Modern offset printing arrived in 1904. Ira Washington Rubel, working in the United States, noticed something by accident: transferring an ink image from a zinc plate to a rubber blanket cylinder, then to paper, produced sharper prints and made the plate last longer. Early offset inks were thick pastes based on mineral oils and natural resins, built to handle the shearing forces of roller trains without splattering or bleeding into the dampening fountain solution.
Through the 20th century, the industry moved from simple oxidative and absorption-drying inks to more advanced chemistry. Key points on the timeline:
1950s–1960s: Oxidative and absorption drying inks got standardized. Reliable enough for long-run publication work.
1960s–1970s: Ultraviolet (UV) curing inks appeared. Instant drying. Quality printing on non-porous plastics became possible.
2000s–Present: Vegetable-based carrier oils, UV LED curing, and low-migration food-grade inks took over, pushed by tightening safety regulations worldwide.

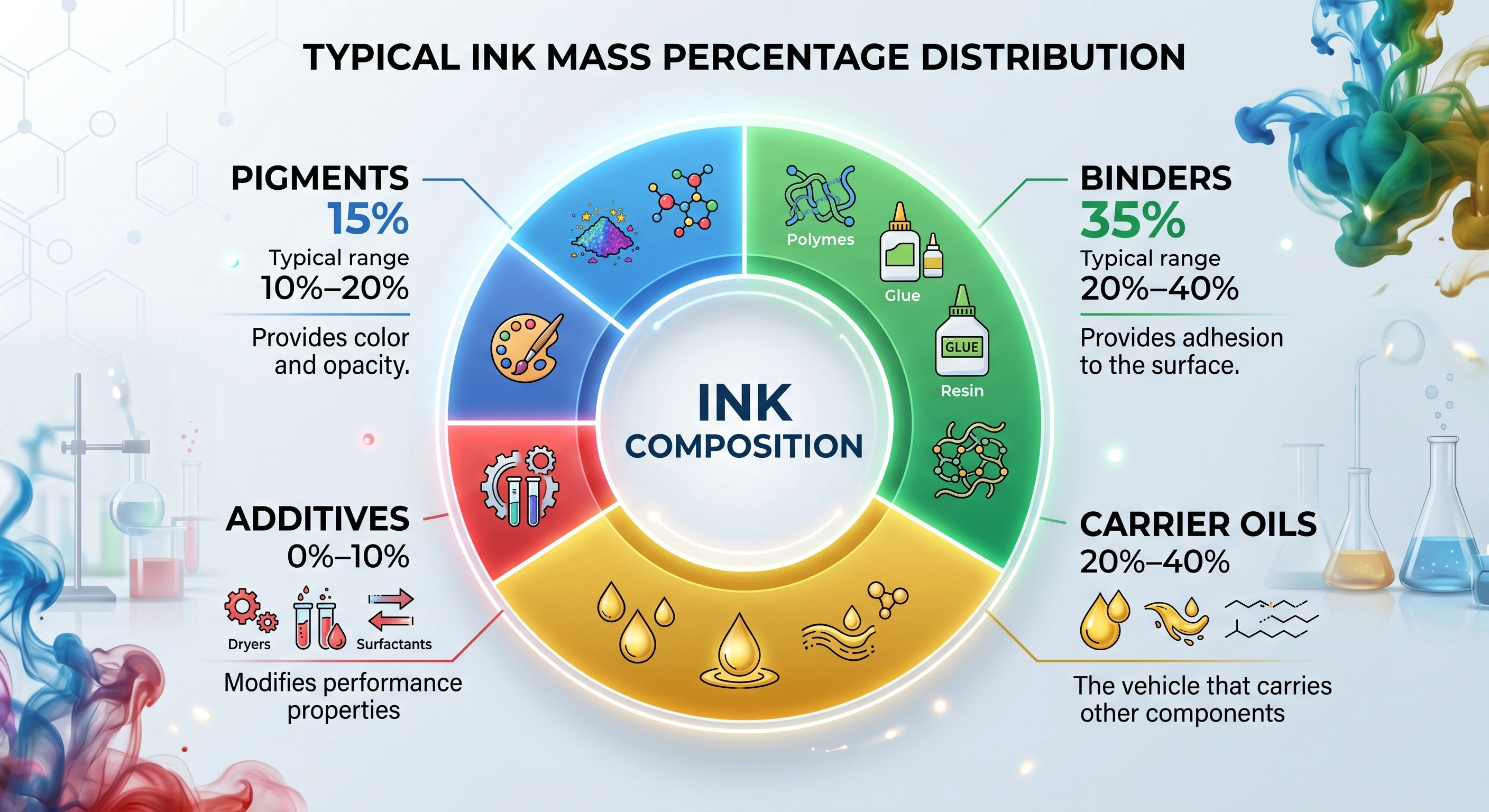

Offset printing inks are dispersions with four main parts: pigments, binders, carriers, and additives.
Pigments are finely ground solid particles. They supply color, opacity, and lightfastness. CMYK process colors use high-performance organic pigments like azo yellows and phthalocyanine blues. Jobs that need high opacity and heat resistance use inorganic pigments instead.
Binders, also called resins, include hard and soft types such as modified rosin esters, alkyds, and hydrocarbons. They wet the pigments, anchor them to the substrate, and provide gloss and film-forming properties.
Carriers are the oils. High-boiling mineral oils or renewable vegetable oils like soy, linseed, and tung. They act as the main diluent, dissolving the resins and controlling viscosity.
Additives make up less than 10% of the formula. Functional ingredients: metallic driers (cobalt and manganese catalysts), anti-skinning agents, polyethylene waxes for scuff resistance, and rheology modifiers.
Component | Typical % | Function | Common Materials |
Pigments | 10% - 20% | Color and opacity | Organic azo, phthalocyanine |
Binders/Vehicles | 20% - 40% | Pigment wetting and film formation | Rosin esters, alkyd resins |
Solvents/Carriers | 20% - 40% | Viscosity and transfer control | Mineral oils, vegetable oils |
Additives | 0% - 10% | Tack adjustment, rub resistance, drying | Polyethylene wax, cobalt/manganese driers |

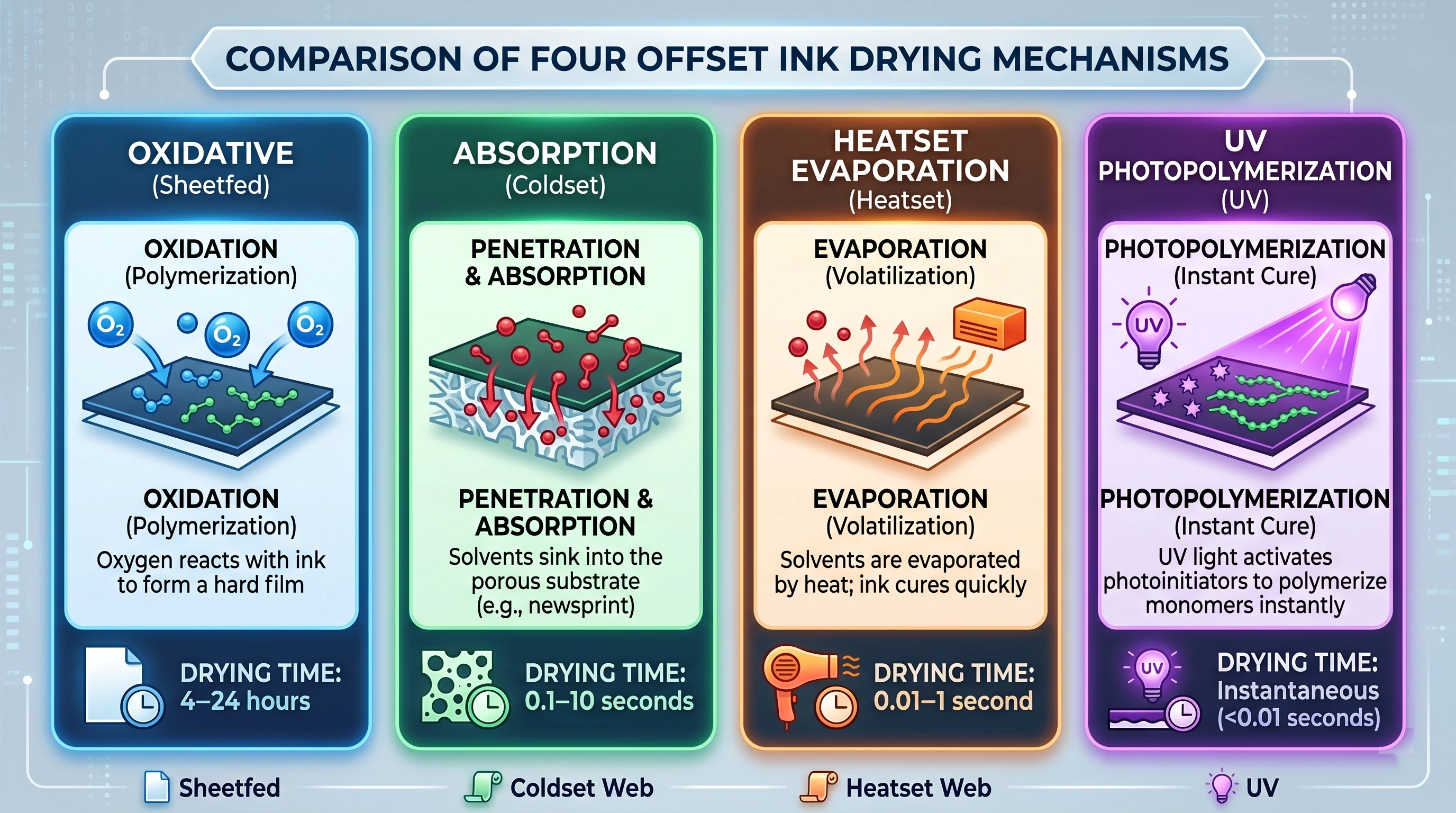

Offset inks are grouped by how they dry, what press they run on, and what substrate they print to.
Type | Drying Method | Substrate | Key Properties | Typical Use |
Sheet-Fed | Oxidative + Absorption | Coated/Uncoated Paper | High gloss, rub-resistant | Commercial, packaging |
Coldset | Absorption | Newsprint | No cross-linking, mineral/soya based | Newspapers |
Heatset | Evaporation + Thermal | Lightweight Coated Paper | Low boiling point carrier release | Magazines, catalogs |
UV | Photopolymerization | Non-porous films, board | Instant curing, zero VOC | Luxury packaging, plastic labels |
LED UV | Photopolymerization (LED) | Various substrates | Low heat generation, energy efficient | Shrink labels, folding cartons |
Hybrid | Oxidative + UV curing | Heavy cardboard, specialty paper | Flexible curing profile | Specialty and multi-process runs |
Offset printing runs on one rule: water and grease don't mix. Flexo and gravure put ink straight onto the substrate. Offset doesn't. It needs a controlled balance between oil-based ink and acidic water-based fountain solution.
On the plate cylinder, non-image areas are hydrophilic. They attract a thin film of fountain solution, which repels the ink. Image areas are oleophilic. They attract the paste ink and repel water.

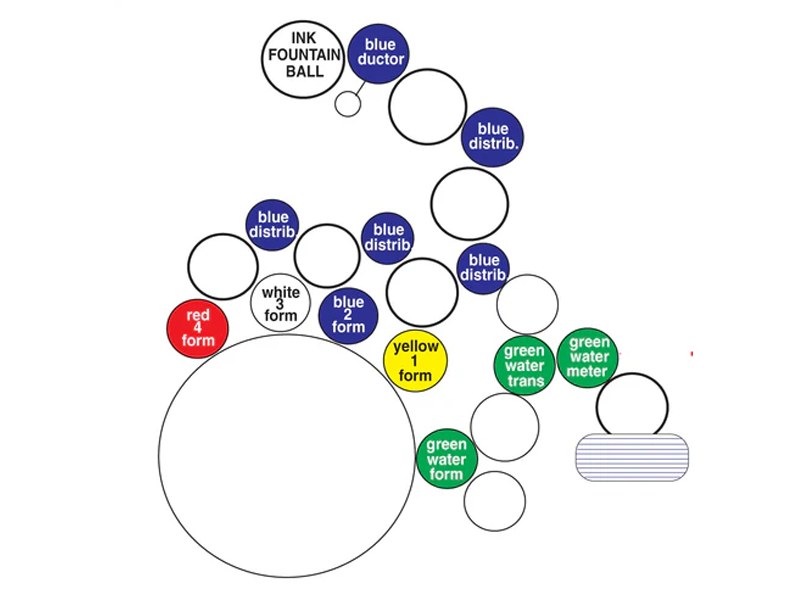

During a run, ink travels from the ink fountain through up to twenty rollers. This roller train puts the ink under heavy shear, which lowers its viscosity through thixotropy so it spreads evenly. At the roller nips, the ink film splits and absorbs some fountain solution. The target is a water-in-oil (W/O) emulsification at around 15% water-accepting capacity.
If the ink absorbs too much water, the emulsion breaks. Viscosity drops, cohesion goes, and you get color fading, tinting, or misting. Too little water and the ink sticks to non-image areas. That's scumming, or catching up. Once the ink and water are stable, the ink film splits onto the rubber blanket cylinder and presses onto the substrate under mechanical pressure.

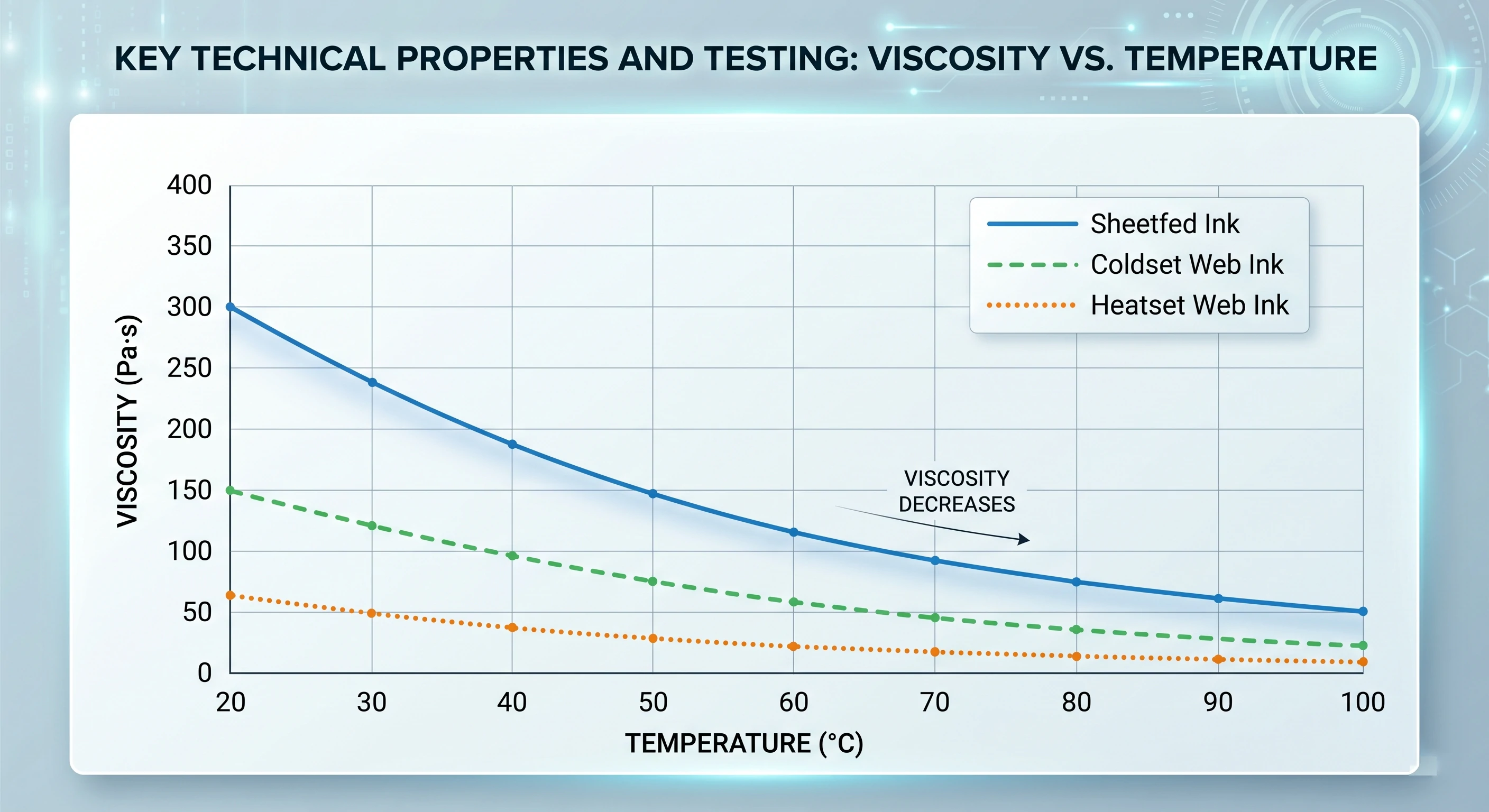

To keep quality consistent, print shops and ink manufacturers test several rheological and physical properties against standardized metrics.
Property | Unit | Standard Method | Typical Range | Significance |
Viscosity | Pa·s | ISO 12644 | 40 to 100 | Affects transfer, shear-thinning behavior |
Tack | Tack Units | ISO 12634 | 5 to 15 | Measures ink splitting resistance, prevents picking |
Fineness/Grind | µm | ISO 1524 | ≤ 10 | Prevents plate wear and nozzle clogging |
Drying time | hours | ISO 9184 | 4 to 12 | Determines turnaround and risk of set-off |
Color strength | % | ISO 787-24 | 100 ± 5 | Dictates ink mileage and color vibrancy |
Gloss | GU | ISO 2813 | 40 to 80 | Visual appearance of solid print areas |
Rub resistance | — | Sutherland | Good / Excellent | Resistance to scuffing during shipping |
Mist/Ink fly | — | IGT TT450 | Low | Controls aerosolized ink in pressroom |
The graphic arts industry relies on standardized ink specs. Without them, you can't get predictable color across different supply chains.

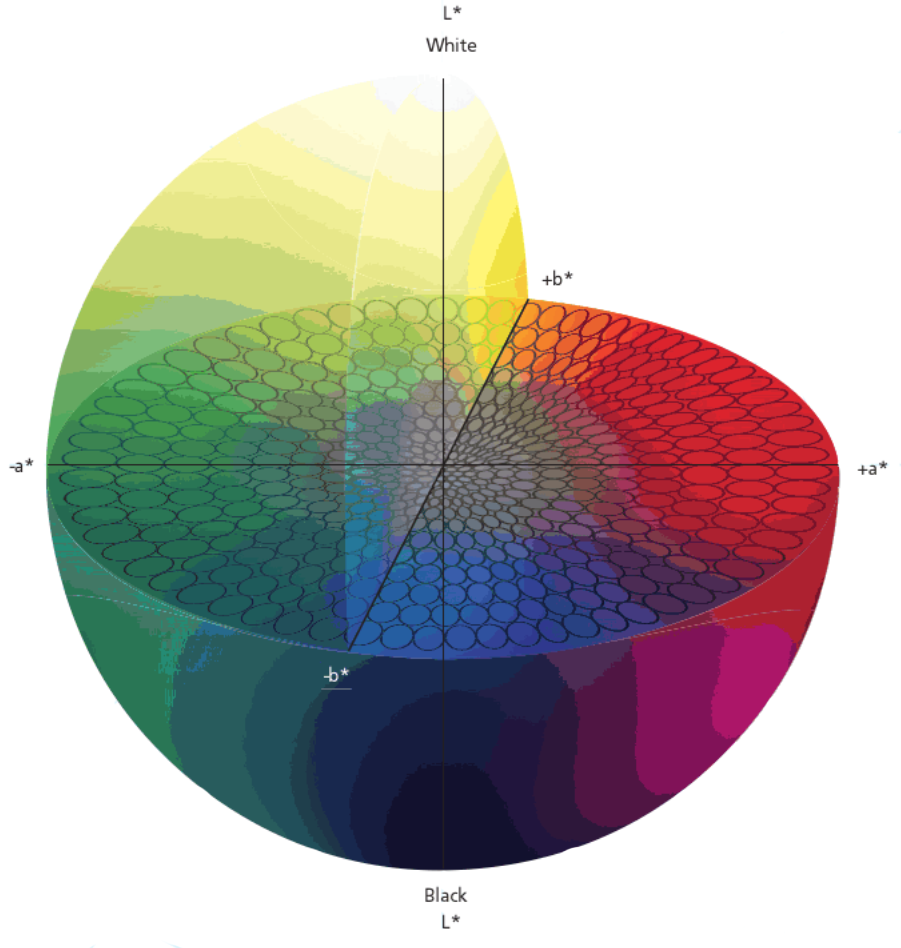

This standard defines the colorimetric and transparency requirements for four-color process ink sets. Ink must hit exact target coordinates in CIELAB color space when printed on Phönix Imperial APCO II/II reference paper at dry film thicknesses of 0.7 to 1.1 µm.
Target CIELAB values under D50 standard illuminant (0°/45° geometry, 2° observer) are specified for Yellow, Magenta, Cyan, and Black. Transparency values (T) must stay above minimums: Yellow (T > 0.08), Magenta (T > 0.12), Cyan (T > 0.20).
ISO 12647-2 defines process control settings for offset lithography. It standardizes target tone value increase (TVI) and colorimetric values across eight print substrates (PS1 to PS8). M1 measurement mode is recommended to handle optical brightening agents (OBAs) in paper.
Offset inks for packaging must meet several global safety requirements:
REACH and RoHS: Restricts hazardous substances, lead, and hexavalent chromium.
CONEG / TPCH: Caps total heavy metals (lead, cadmium, mercury, hexavalent chromium) in packaging inks below 100 ppm.
Swiss Ordinance (SR 817.023.21): Limits raw materials in food-packaging inks to a positive list (Annex 10). Maximum migration limit for non-listed substances: 10 ppb.
The environmental side of offset printing has improved through changes in ink formulation. Older inks used mineral oils with aromatic hydrocarbons (MOSH/MOAH) as the solvent phase. Modern inks swap mineral carriers for vegetable oils: soybean oil, linseed oil, tung oil.
Soy and vegetable inks deliver high color saturation while cutting VOC emissions. These vegetable-based binders also make de-inking easier during paper recycling. They don't permanently bond with cellulose fibers, so the recovered pulp comes out cleaner.
Offset ink needs a different set of physical properties than inks made for other printing processes.
Ink Type | Viscosity (Pa·s) | Transfer Mechanism | Typical Film Thickness | Drying Method | Typical Applications |
Offset | 40 to 100 | Roller train → Plate → Blanket | 0.5 to 1.5 µm | Oxidative, absorption, UV | Books, high-end packaging |
Flexo | 0.05 to 0.5 | Anilox roller → Relief plate | 1.0 to 3.0 µm | Evaporation, UV curing | Cartons, paper bags, napkins |
Gravure | 0.01 to 0.2 | Engraved cylinder → Substrate | 2.0 to 8.0 µm | Volatile solvent evaporation | Long-run flexible packaging |
Screen | 1.0 to 10.0 | Squeegee through mesh | 10 to 100 µm | Solvent evap, UV curing | Textiles, signs, ceramics |
Digital (Inkjet) | 0.001 to 0.02 | Piezo/Thermal jetting | < 1.0 µm | Evaporation, radiation cure | Short-run commercial, labels |
Two forces are shaping offset ink right now: energy efficiency and low-migration compliance.
LED UV inks cure instantly under narrow-band UV light from energy-saving LEDs. The photopolymerization reaction avoids the high heat of conventional mercury vapor lamps. That means you can print on thin, heat-sensitive plastic films and synthetic papers without warping them.
For food and pharmaceutical packaging, low-migration (LM) inks are the default. These formulations replace low-molecular-weight monomers and volatile photoinitiators with polymeric, high-molecular-weight versions. Once cured, you get a tightly cross-linked polymer network. Chemical compounds can't migrate into the packaged product.
Ink makers now optimize formulas to work with process-free CTP plates. These plates develop on-press: the non-image polymer coating dissolves in the dampening solution and gets peeled off by the tack of the ink. The ink needs precise tack to finish development within 10 to 20 sheets without clogging the rollers.
Four main components: finely ground organic or inorganic pigments for color, synthetic or rosin resins as binders to anchor the colorants, vegetable or mineral carrier oils for viscosity, and functional additives like waxes or driers to control drying and rub resistance.
Offset ink is a thick paste, typically 40 to 100 Pa·s, transferred through rollers and blankets. Digital ink is a low-viscosity liquid or dry powder made for non-contact jetting or electrostatic transfer. It doesn't need the heavy tack that lithographic roller trains demand.
Conventional offset inks dry through oxidative polymerization combined with paper absorption. That takes several hours to cross-link. Solvent-based gravure and flexo inks evaporate quickly. UV-curable inks cure instantly. The oil binders in conventional offset inks cure gradually when oxygen hits them.
UV offset inks are solvent-free liquid monomers. They cure instantly through photopolymerization under ultraviolet light and produce no VOCs. Conventional offset inks use mineral or vegetable oils that dry over hours through oxidative cross-linking and absorption into paper fibers.
Offset printing depends on oil and water repelling each other. The ink needs to emulsify about 15% water. Too much water breaks the emulsion: color fades, tinting appears. Too little water lets ink stick to non-image areas. That's scumming.
References and Citations
ISO 2846-1:2017, Graphic technology — Colour and transparency of printing ink sets for four-colour printing — Part 1: Sheet-fed and heat-set web offset lithographic printing.
ISO 12647-2:2013, Graphic technology — Process control for the production of half-tone colour separations, proof and production prints — Part 2: Offset lithographic processes.
ISO 12634:2017, Graphic technology — Determination of tack of paste inks and vehicles by a rotary tackmeter.
ISO 12644:1996, Graphic technology — Determination of rheological properties of paste inks and vehicles by the falling rod viscometer.
Swiss Federal Food Safety and Veterinary Office (FSVO), Ordinance on Materials and Articles in Contact with Food (SR 817.023.21, Annex 10).
Toxics in Packaging Clearinghouse (TPCH), CONEG Model Legislation on Heavy Metals in Packaging.
European Printing Ink Association (EuPIA), Exclusion Policy for Printing Inks and Related Products.
Fogra Forschungsgesellschaft Druck e.V., Certification of offset printing inks according to ISO 2846.
IARC Monographs on the Evaluation of Carcinogenic Risks to Humans, Volume 65, Printing Inks and Processes.
Kipphan, H. (2001). Handbook of Print Media: Technologies and Production Methods, Springer-Verlag.
American Soybean Association (ASA), Soy Ink Environmental Certification and Standards.
